Patch instruction to solder rp2040-zero module instead of teensyLC module

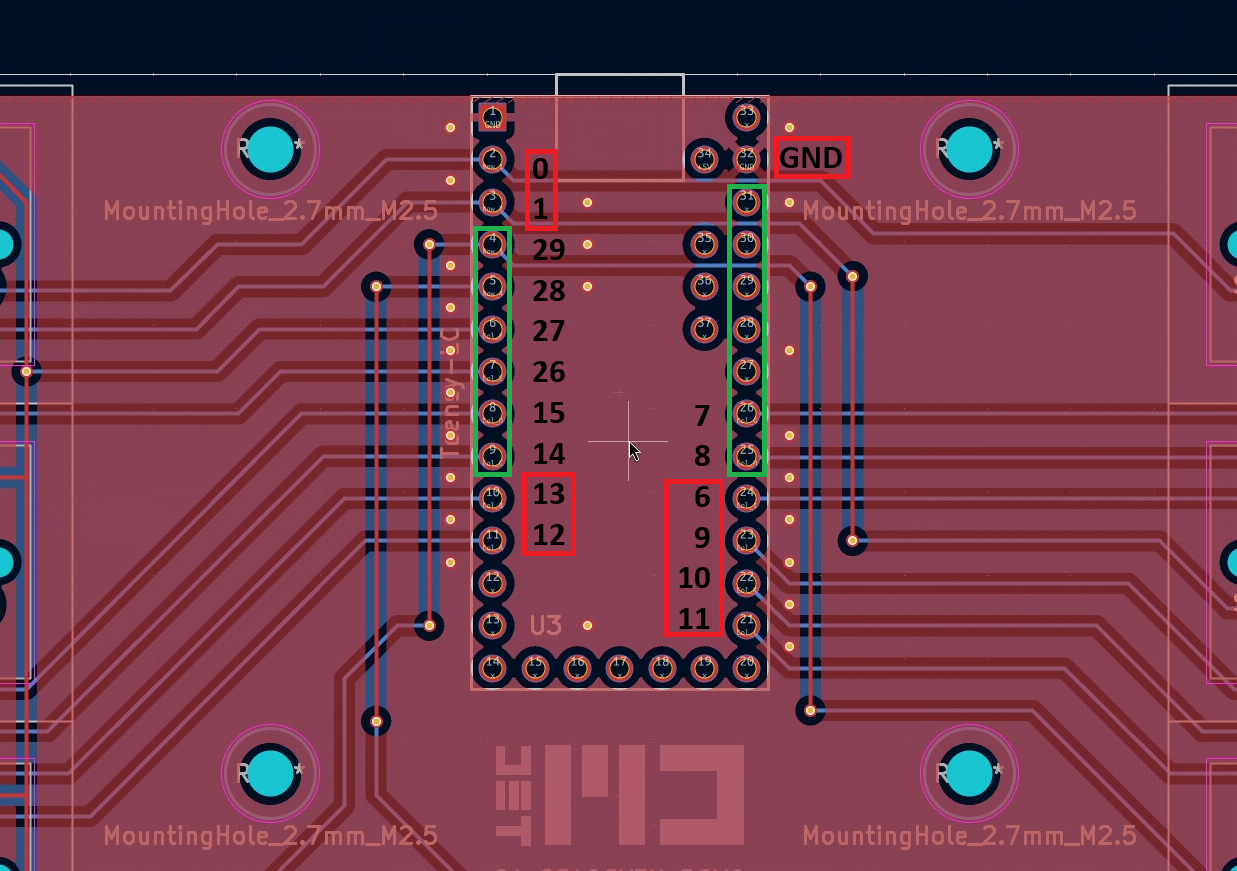

  1. Solder one x6 and one x7 pin headers on the green marking.
  2. Prepare wire and solder on GND pad on the PCB.
  3. Prepare wires and solder on gpio 0 and 1 on the PCB.
  4. Solder rp2040-zero on the two pin headers.
  5. Solder GND, gpio 0 and gpio 1 on the rp2040-zero.

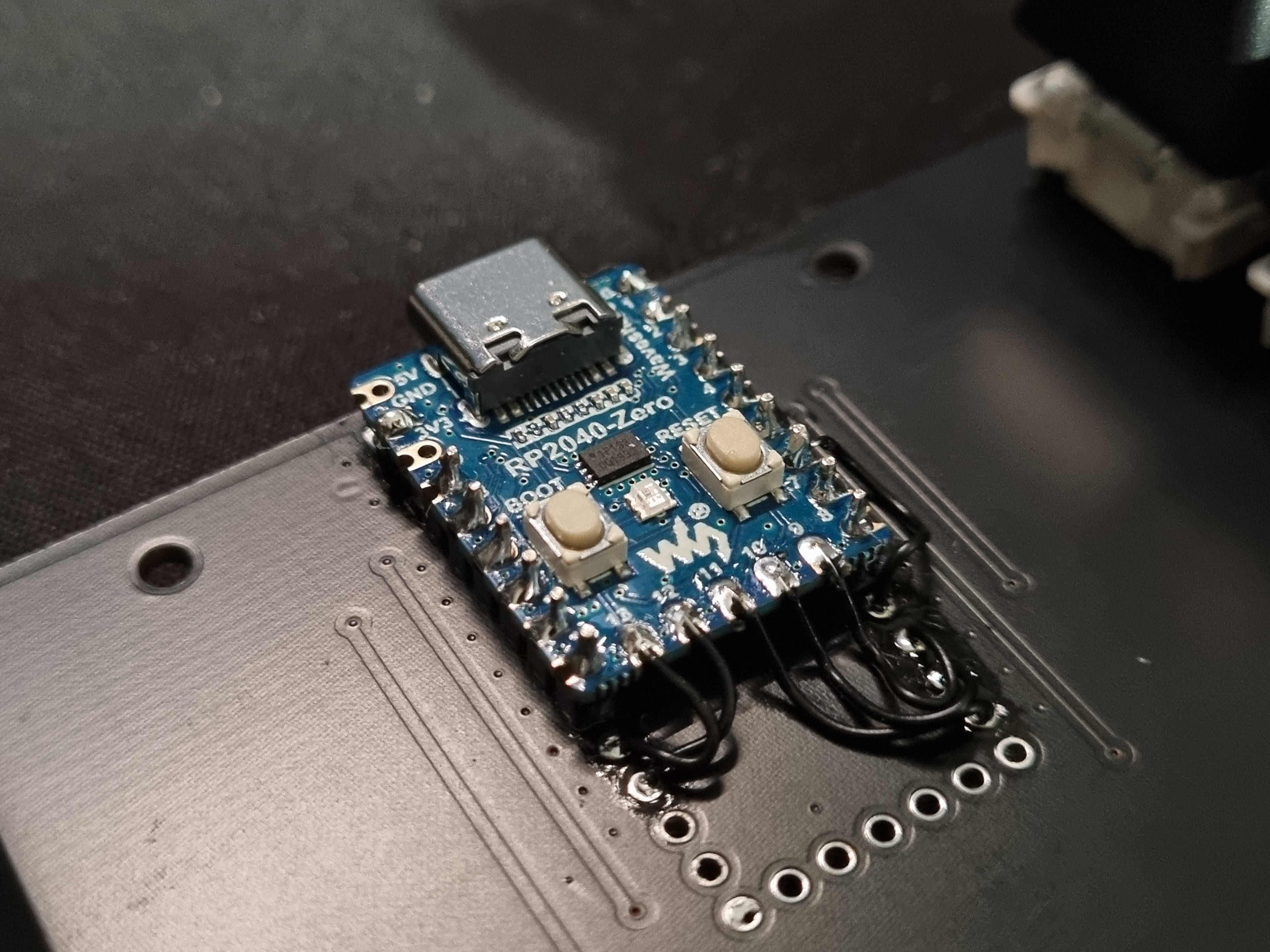

  6. Solder wires according to picture above between rp2040-zero and PCB.
