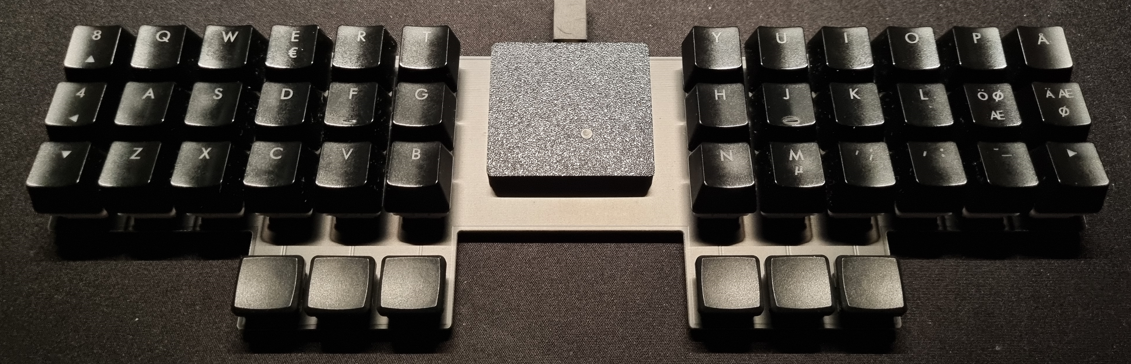

CMDR keyboard 42


Keyboard based on standard teensy "Keypad" library for button scanning, standard teensy "usb_keyboard" library for HID keyboard usb data communication.

Layout

 Layer 0
 ---------------------------------------      ---------------------------------------
 |  Tab  |  Q  |  W  |  E  |  R  |  T  |      |  Y  |  U  |  I  |  O  |  P  |   Å   |
 | LCtrl |  A  |  S  |  D  |  F  |  G  |      |  H  |  J  |  K  |  L  |  Ö  |   Ä   |
 | Shift |  Z  |  X  |  C  |  V  |  B  |      |  N  |  M  |  ,  |  .  |  -  | Shift |
 --------------------| Alt | Fn  | Spc |      | Spc | Fn  |     |--------------------
                     -------------------      -------------------
 Layer 1 (Fn)
 ---------------------------------------      ---------------------------------------
 |  Esc  |  F1 |  F2 |  F3 |  F4 |  F5 |      |  F6 |  F7 |  F8 |  F9 | F10 | BSpc  |
 | LCtrl |  1  |  2  |  3  |  4  |  5  |      |  6  |  7  |  8  |  9  |  0  | Enter |
 | Shift |  6  |  7  |  8  |  9  |  0  |      |  <  |  ´  |  '  |  ¨  |  +  | Shift |
 --------------------| Alt | Fn  | BSpc|      | BSpc| Fn  |AlrGr|--------------------
                     -------------------      -------------------
 Layer 2 (Fn + Fn)
 ---------------------------------------      ---------------------------------------
 |  F11  | F12 | F13 | F14 | F15 | F16 |      |  §  |GuiLK| Gui |     | CpLk| BSpc  |
 | LCtrl | Play| Next| F17 | F18 | F19 |      | Left| Down| Up  |Right| Del | Enter |
 | Shift | F20 | F21 | F22 | F23 | F24 |      | Home| PgD | PgU | End | Ins | Shift |
 --------------------| Alt | Fn  | Gui |      | BSpc| Fn  |     |--------------------
                     -------------------      -------------------

Features

  • 42 keys "Split" keyboard layout. 36 finger buttons and 6 thumb buttons.
  • Extreme low profile (only one pcb).
  • Cost efficient solution with one pcb and one 3D printed cover.
  • Function keys with total of three layer support (Primary + 2fn layers).
  • Status indication -
    • LED off = Normal mode
    • LED flashing = Caps Lock activated
    • LED on = Gui key lock activated

Hardware

Schematics

  • 1x TeensyLC MCU
  • 36x Cherry MX compatible switches
  • 6x Kailh Choc low profile switches
  • 42x 1N4148 diodes
  • 1x PCB Gerber files
  • 1x 3D printed MCU cover (optional) STL file
  • 1x Cherry MX mounting jig (optional) STL file
