Han Mqtt Adapter

Protocol

link to HAN protocol

Hardware

Han port pinout (RJ12):

5V (max 250mA)
Data request (connect to 5V to enable)
Data GND
NC
Data (TX 115200 inverted open drain)
GND

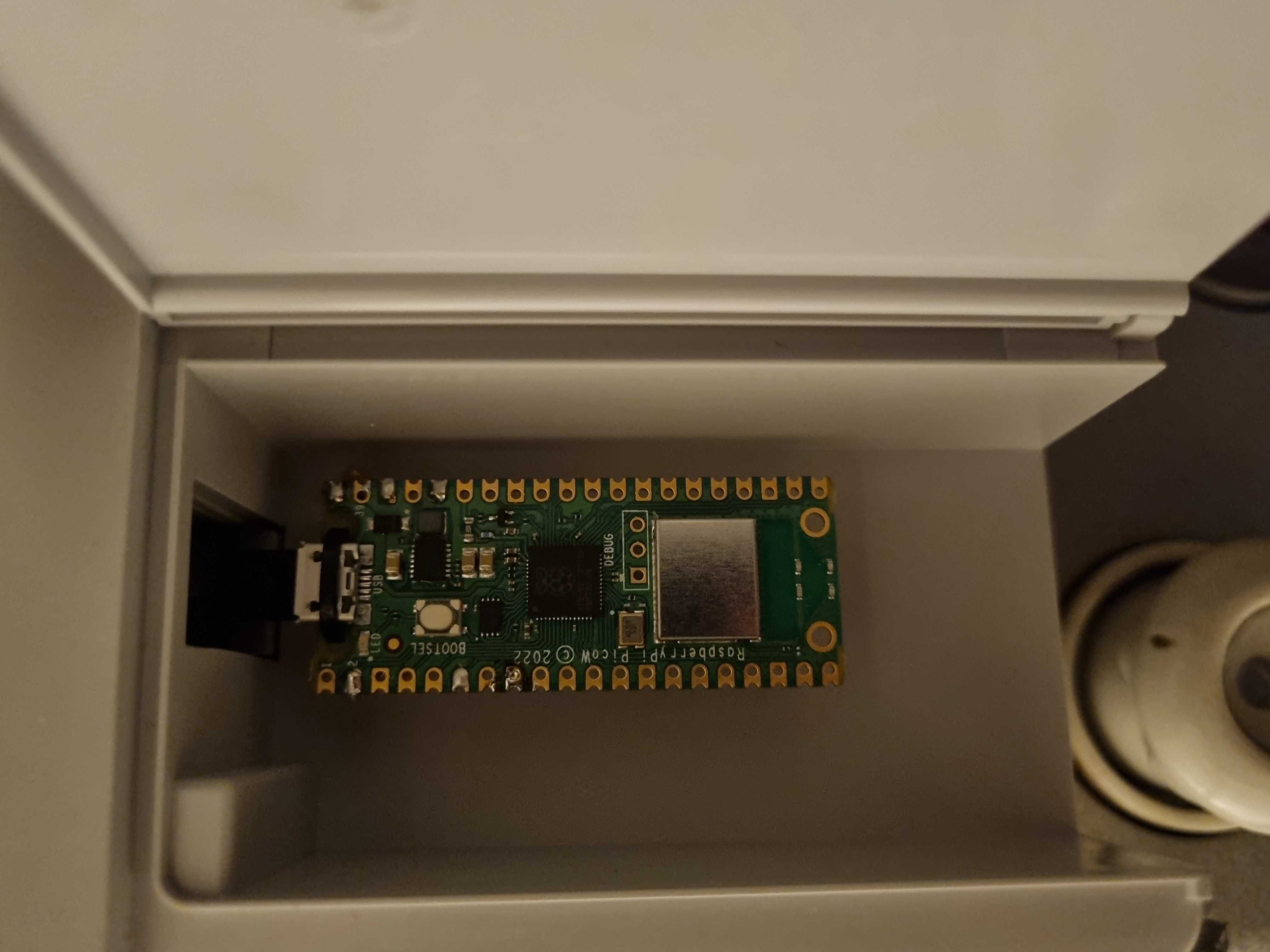

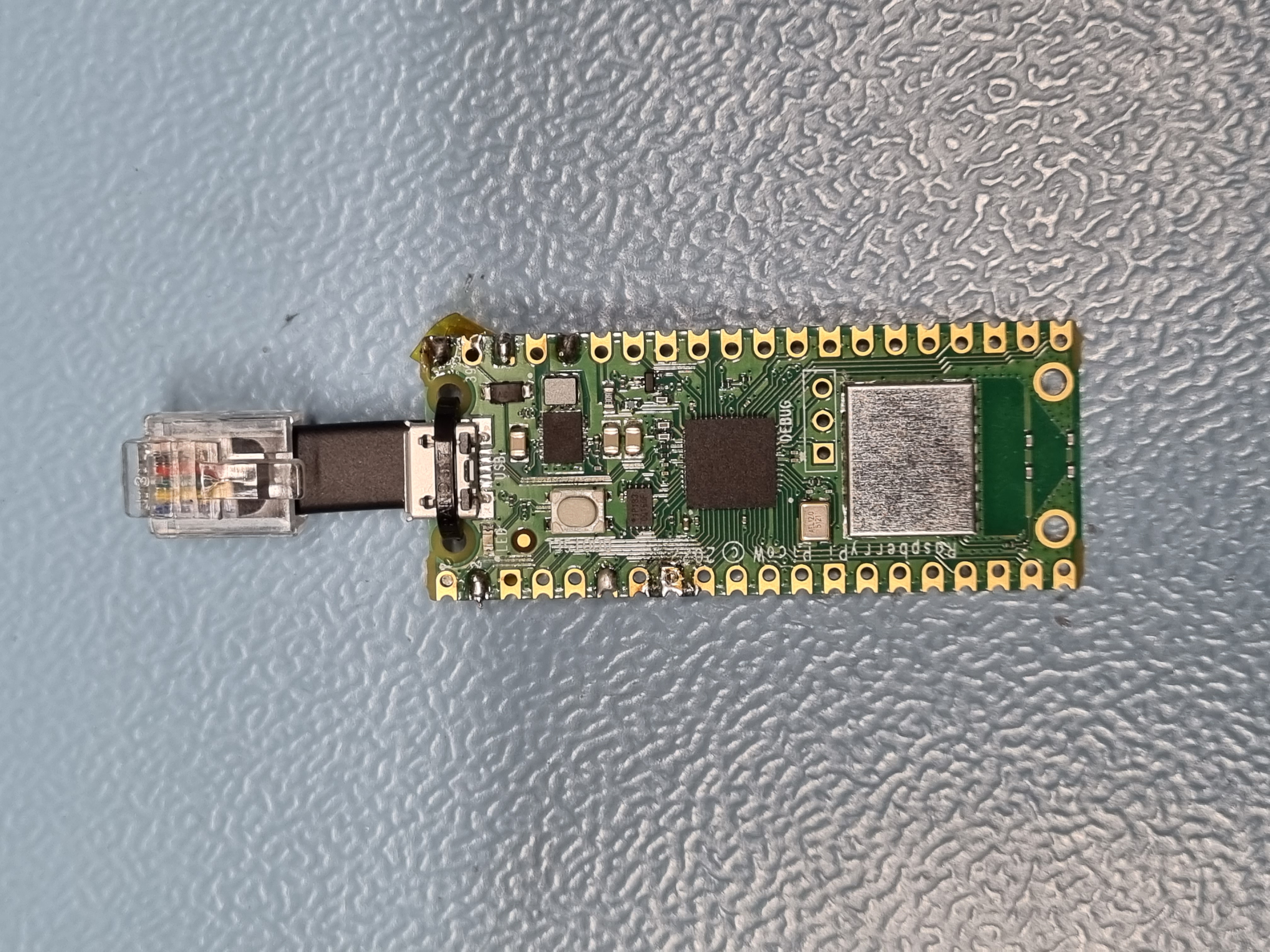

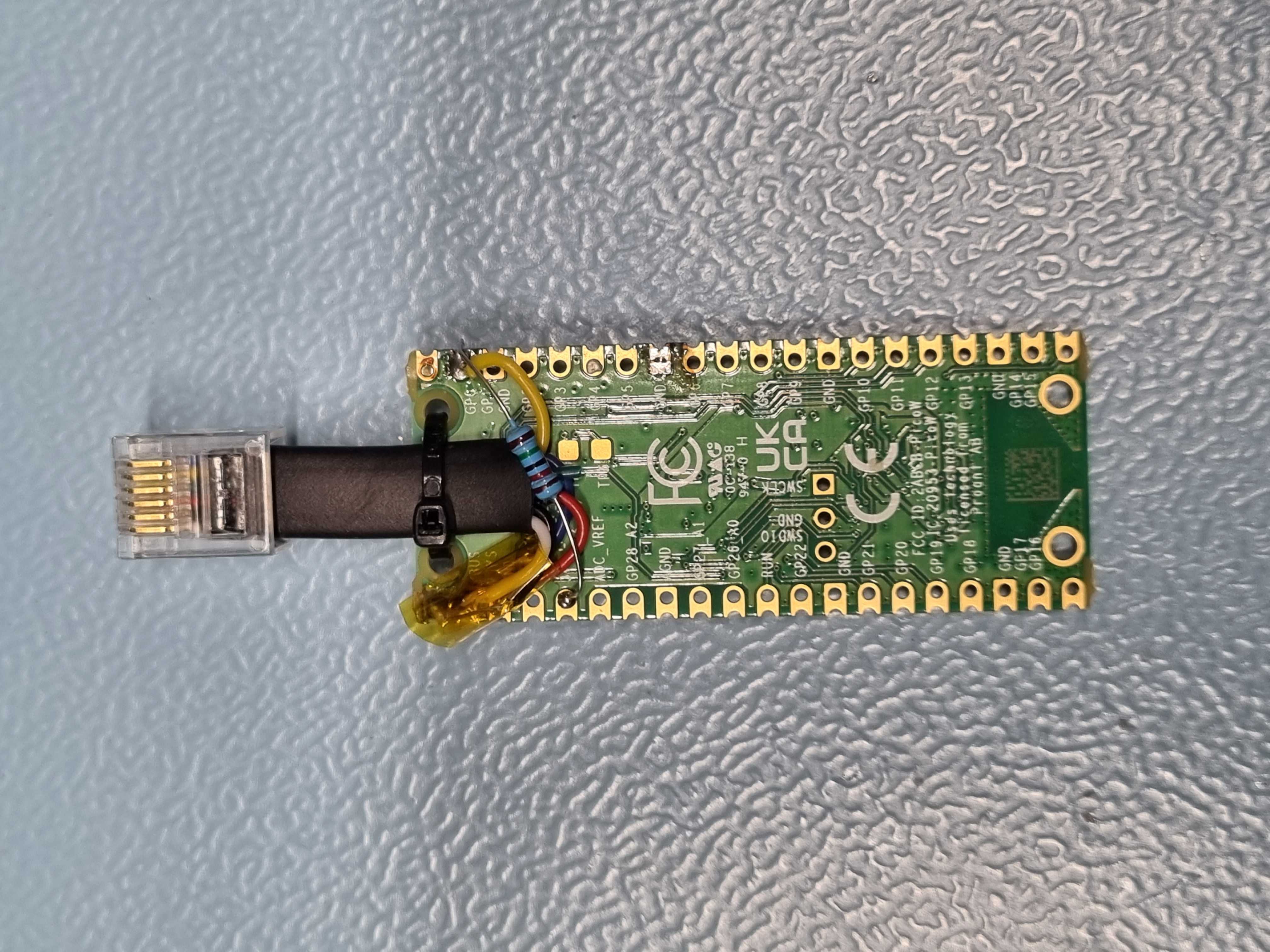

PicoW connection:

Connect HAN port pin 1 and 2 to pico 5V
Connect HAN port pin 3 and 6 to pico GND
Connect HAN port pin 5 to pico 1 (RX)
Add pullup resistor (15k) between Pico RX pin and 3V3
